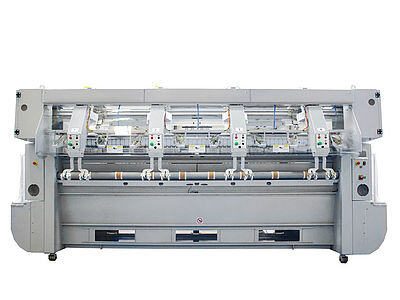

Alpha F9: ALPHA by JENSEN

Highlights:

Excellent feeding quality for large piece linen for the hospitality and healthcare sector, including light and heavy linen, like duvet covers and tablecloths
Feeding principle: Fast, light and durable feeding beam with bar clamp
Support ‘wings’ support linen transfer across the entire feeding beam for optimum transfer results
Small piece feeding possible by raising bridge between feeder and ironer
One lane from three or four feeding stations
Working width: 3000, 3300 and 3500 mm (118”, 130”, 138”)

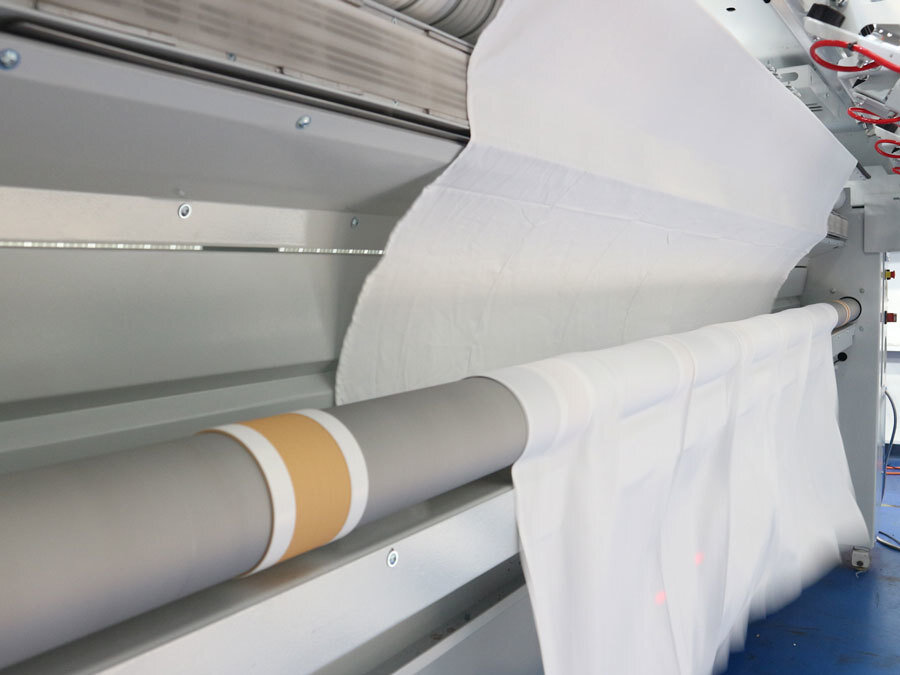

Lower vacuum box with large pick-up rollers ensure that longer and heavier linen are properly shaken and spread
Rotating support wings support linen across the entire length of the feeding beam
Spreading belts backed with vacuum support ensure linen is flattened and pressed against spreading belts for optimal spreading

The next item can be spread before the previous item has been fed because the vacuum box allows the spreading of a new piece while treating the trailing edge of the previous piece
Additionally, trailing edge sensors maximum production pieces per hour by recognizing the trailing edge of the previous piece and automatically timing production of the next piece to achieve edge-to-edge feeding, even in mixed production

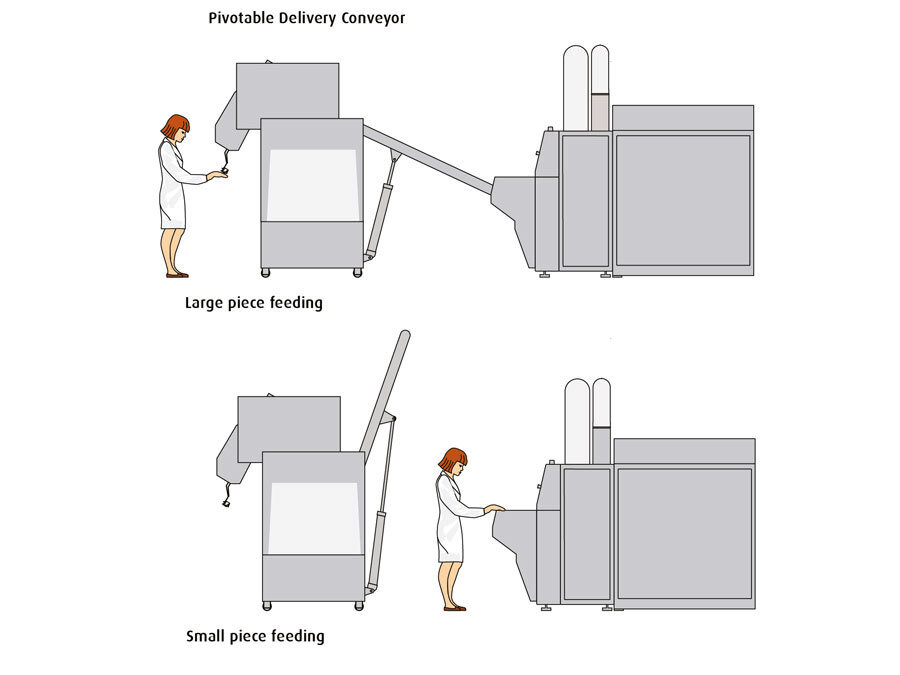

Bridge between feeder and ironer can be raised to allow for manual small-piece feeding directly into the ironer
Compared to standard feeders that lower the bridge, there is more working space between the two machines
