Product

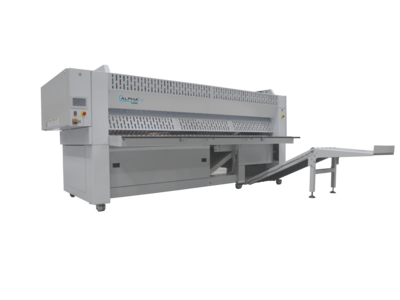

ALPHA X3 / ALPHA XW3

Simple, compact, multi-purpose folder

Highlights:

  • Simple value-engineered design
  • Reliable multi-purpose operation
  • Compact solution
  • Working widths: 3000, 3300 and 3500 mm (118”, 130”, 138”)
  • ALPHA X3 Max. cross fold width 800 mm (31”)
  • ALPHA XW3 Max. cross fold width 1000mm (39”)
  • Max speed: 60 m/min (196 ft/min)

Simple value-engineered design

  • Operates on fewer moving parts and a simplified design, offering all the basic functions required for operational success
  • Stacker is integrated into the cross fold section of the machine

Reliable, multi-purpose operation

  • Excellent folding marks and constant linen support result in high folding quality, even in mixed production
  • Especially designed for reliable quality on a wide variety of flatwork – capable of handling very thin sheets as well as very thick linen like duvet
  • Because all belts operate from one heavy duty motor, they operate at the same speed, eliminating need for individual belt speed adjustment. In addition to being easier to service, it also results in very reliable folding quality

Compact solution

  • Small machine footprint
  • Save the space of an external stacker thanks to the machine’s integrated stacker design
